Model
Model

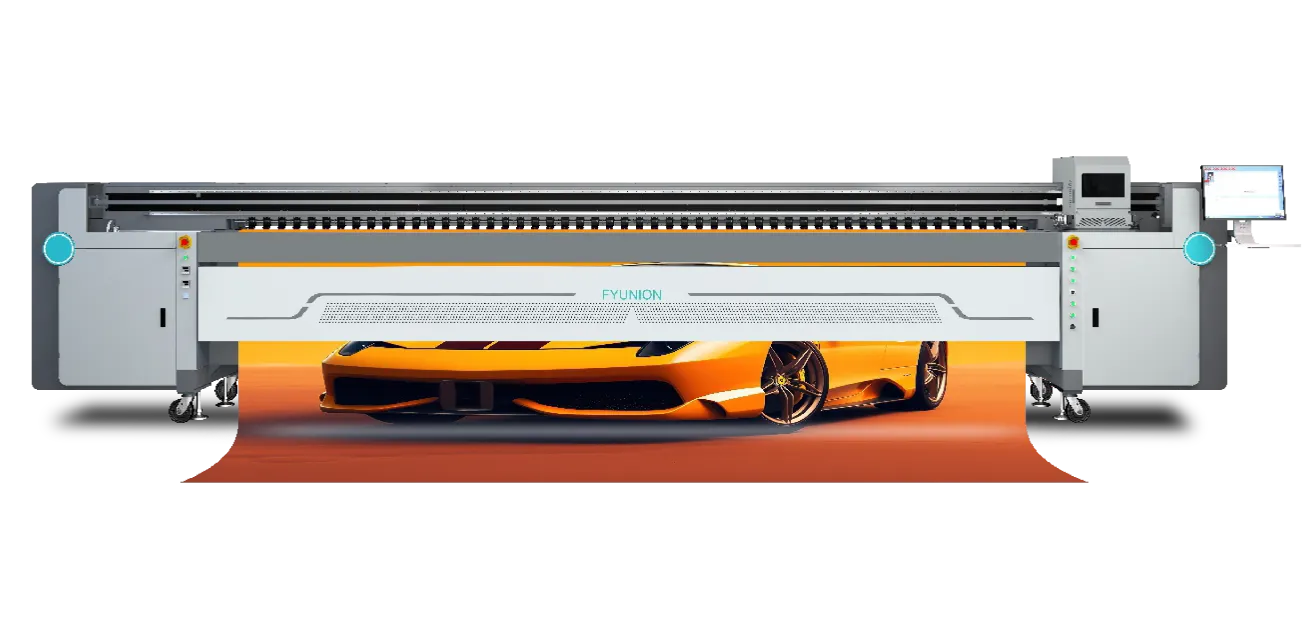

FY-5300AT Plus
Print Width
5.3m
Print Speed
| Model | FY-5300AT | ||
|---|---|---|---|
| Printhead | SPT Alpha 1024HG | SPT 5O8GS | |
| Number of Printhead | 4pcs | 6pcs | 8pcs |
| Print width | 5300mm | ||
| Print Speed 2PASS | 288 m²/h | 410 m²/h | 180 m²/h |
| Print Speed 3 PASS | 192 m²/h | 275 m²/h | 140 m²/h |
| Print Speed 4 PASS | 144 m²/h | 205 m²/h | 90 m²/h |
Specification
Air Compressor Requirement
Positive 0.6~0.8MPa
Media Type
Banner,vinyl,mesh and other roll to roll outdoor
Ink:
Negative pressure ink supply
Printhead Height
Equipped (Infrared Ray+Fan Drying)
RIP
United Fancy, FlexiPRINT, Maintop
Printer
AC220V 50HZ 1500W
Dryer
AC220V 50HZ 7200W
Platform heating
AC220V 50HZ 2000W
Features
01
Negative pressure ink supply and heatable sub tanks, to supply stable and steady ink flow under all conditions.
02
High intensive cross-beam of 15cmx20cm steel, plus machine finished aluminium bar and double silent linear guide.
03
Sturdy frame structure to assure mechanic precision and printing resolution after long life of use.
04
Starry platform for perfectly balanced heating and vacuum media hold-down.
05
Pneumatic electric press handle: pneumatic electric controlled press handle of pinch rollers and grid rollers ease of stable operation.
Options
Light box advertising
Background
Ceiling
Wall Wrapping
Bill Board
Interior Decor
